OUTSIDE BROADCASTING VAN (OB VAN)

Live streaming and TV programs

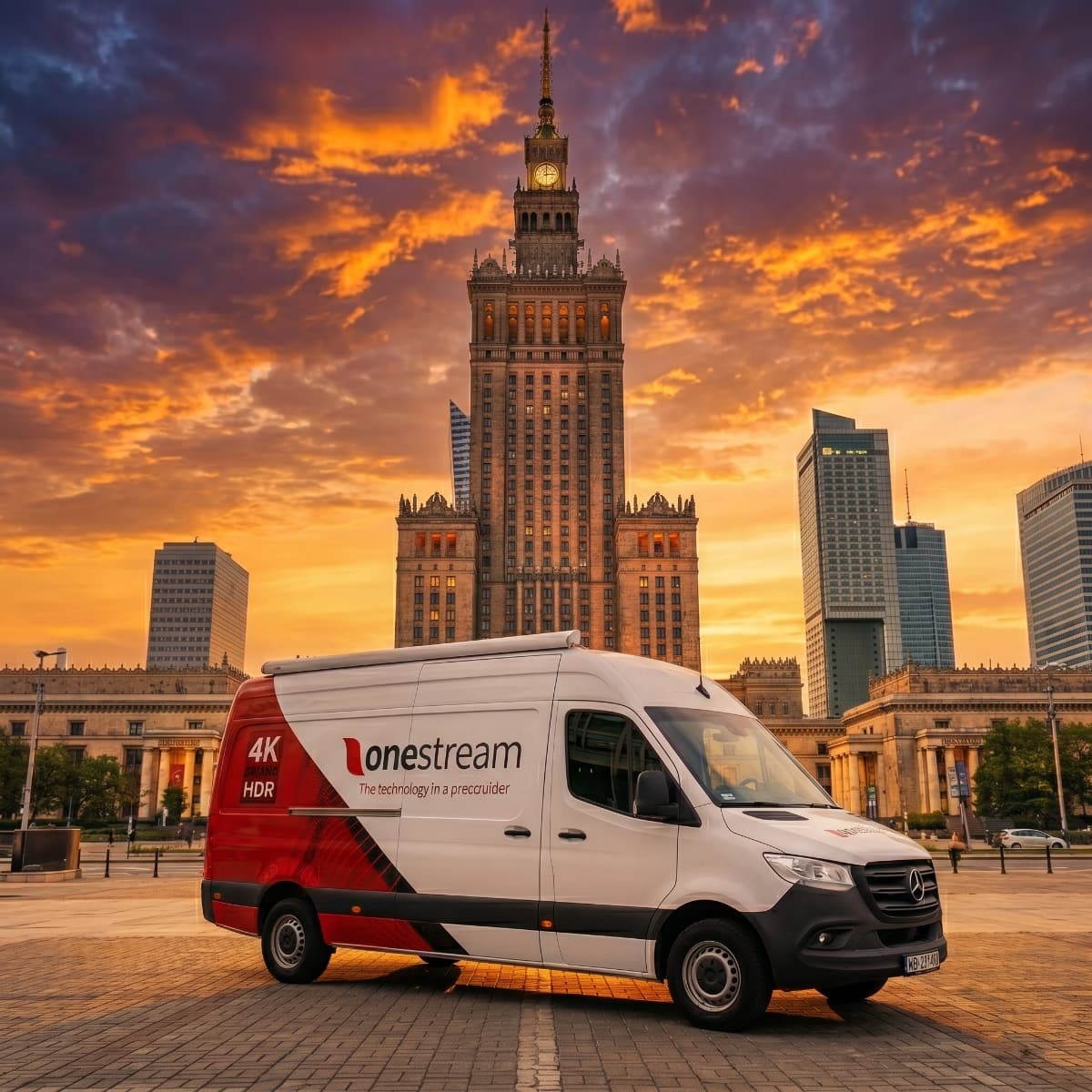

Outside broadcasting van, named UNIT10 UHD, built on base of the longest version of the Mercedes Sprinter, was created in 2020 and can handle the most demanding events, sports and music events as well TV productions.

Outside broadcasting van (OB VAN) with 10 fiber optic cameras including 6pcs Panasonic AK-HC 3900 4K/12G cameras chains with a wide selection of lenses and robotic PTZ cameras 4pcs Panasonic AW-UE 150 4K/12G. There are 6 seats in the OB VAN (vision mixing, audio engineer, shading area, graphic system operator, prducer, EVS replay system) allowing the team to work comfortably.

OB VAN is equipped with RTS Intercom System along with 8 wired desktops and 8 wireless beltpacks. Of course, we have a replay system (EVS XT3 ChannelMax) and an excellent graphics system on board. A huge advantage of our transmission truck is the quality of the image that is recorded by Panasonic cameras in 4K/12G standard with HDR (High Dynamic Range) technology. The transmission truck is also equipped with the latest LiveU equipment and servers that allow us to conduct remote calls and telebridges even in 4K/12G quality.

OUTSIDE BROADCASTING VAN (OB VAN)

Live streaming and TV programs

Outside broadcasting van UNIT10 UHD based on Mercedes Sprinter car. Year of production 2020. Dedicated to support most demanding events such as sports, music events and television productions.

Outside broadcasting van (OB VAN) is equipped with 10 fiber optic cameras including 6 Panasonic AK-HC 3900 4K/12G camera chains with a wide selection of lenses and 4 PTZ cameras. Panasonic AW-UE 150 4K/12G. There are 6 seats in the OB VAN (vision mixing, audio engineer, shading area, graphic system operator, prducer, EVS replay system) allowing the team to work comfortably.

Outside broadcasting van (OB VAN) is equipped with the latest version of the RTS Intercom System along with 8 wired and 8 wireless beltpacks. A huge advantage of our OB VAN is the quality of the image that is recorded by Panasonic camera chains in 4K/12G standard with HDR (High Dynamic Range) technology. We also use LiveU transmitting devices and receiving servers for remote connections.

Panasonic Ak-HC 3900 1080/50 or 4K/12G HDR camera

OUTSIDE BROADCASTING VAN TECHNICAL SPECIFICATIONS

OB VAN

CAR

Mercedes Sprinter 316 LONG
Car length 7.4m
Technical space 6.2m
Payload 3.5t
LED outdoor lighting
Solar awning
Three-phase power supply 32A
Also 220V power supply
UPS system

INTERIOR SYSTEMS

Air conditioning in production are
Air conditioning in technical area
Webasto heating
LED lighting for each positions
LED ambient color lighting

PRODUCTION AREA

Sites 6pc.
TV Logic 4k/12G 43" screens- 2 pcs.
BenQ SW272U SDR/HDR screens
BenQ 27" screens in audio area
WiFi
Masterclock

VIDEO EQUIPMENT

CAMERAS

Panasonic AK-HC3900G 4K/UHD studio camera - 6 pcs.
Lenses:
- Canon HJ14 eX4.3 BIASE - 1 pc.
- Fujinon HA13 x4.5 BERD - 1 unit.
- Fujinon XA20 x8.5BRM - 4 pcs.
- Fujinon HA42 x9.7-BERD - 1 unit.
- Canon XJ86 x9.3 - 1 unit.
- others on request

Panasonic AW-UE 150 PTZ cameras - 2 pcs.
AU-RP 150 PTZ camera control panel

Marshall CV 503 POV cameras - 4 pcs.
Marshall CV-RCP-V2 control for CCU cameras

VISION MIXER

Ross Carbonite Ultra 12G 4K 2ME
Ross Carbonite Black 2 panel (2ME)
12G 4K Hyperdeck recorders 1 pc.
Atomos Shogun II recorder - 8 recording tracks

ROUTING

1 x Videohub 12G/4K 80x80 Router
4 x Cisco CBS 350

AUDIO EQUIPMENT

AUDIO MIXER

Yamaha QL5
Stangebox Yamaha Tio 1608-D
Deante audio fiber link 300m
Sonifex AVN-CU4 commentator desk.
Cisco CBS CBS 350 Dante Routing - 4 pcs.

SOUND

MICROPHONE SYSTEMS

Shure ULXD 4Q Dante system - 8 pcs.
Sennheiser EW 100 microphone system - 4 pieces.

MICROPHONES

DPA-6066 headset microphones - 8 pieces.
Lavalier microphones Countryman B6 - 4 pcs.
Countryman E5 headset microphones - 4 pieces.
Sennheiser MKE 2 GOLD microphones - 4 pieces.
Sennheiser e935 handheld microphones - 4 pcs.
Shure Beta 58 delivery microphones- 4 pcs.
Shure Beta 87A handheld microphones - 4 pieces.
Sennheiser IEM G4 - 8 pcs.

COMMENTATOR PANEL

Sonifex AVN-CU 4
Support for up to 4 commentators
Analog or dante connection
Sennheiser HMDC 27 active noise cancelling headphones

COMMUNICATION

RTS intercom, OMS OMNEO matrix
Digital wireless beltpacks 8 pcs.
Digital desktop RTS DKP 4016 - 5 pcs.
ROAMEO wireless system
IFB system via Intercom RTS - 8 pcs.
Motorola CP040 10x

ADDITIONAL ELEMENTS

STREAMING

ENCODER

Encoder LiveU LU 600 (8 LTE modems).
Encoder LiveU LU 300 (4 LTE modems)
Teradek Prism 4K/12G HDR - 2 pcs.
LiveU LU4000 12G server 4K -1out 12G
LiveU LU2000 HD Server - 4 Out HD
LiveU Cloud server12G/4K
Remote Production studio

GRAPHICS

Caspar 12G 4K server
XPression 12G 4K graphics server
DeckLink 4K Extreme card
DeckLink 8K PRO card
Wirecast PRO
Vmix 4K

REPLAY SYSTEM

EVS XT3 ChannelMax (12 channel).

12 channel server
EVS LSM controllers 2 pcs.
1080p capability
DNxHD codec
Apple ProRes 4:2:2 codec
DVCPRO HD/50 codec
Mjpeg codec
AVC Intra codec
Advanced playlist management
Extended RAID SAS 900GBx 6 pcs.

Download OB VAN specification

OUTSIDE BROADCASTING VAN (OB VAN)

RENTAL

In our offer you can rent OB VAN for any project in Poland and Europe. The rental price includes the basic configuration, any additional elements are budgeted based on the assumptions of the project. The main assumptions in the rental offer:

Rental time min. 1 day
Getting to any place in Poland or Europe
Rental OB VAN with technical engineer
Rental without our services
Assistance in project preparation
See a video about our transmission vehicle HERE

OUTSIDE BROADCASTING VAN (OB VAN)

PRODUCTION

We specialize in television production and live streaming. Therefore, anyone can commission us for complex signal production, prepared on the basis of our Outside broadcasting truck (OB VAN).

Comprehensive production
Full service
Configuration
Own equipment facilities
Renatal equipment
Support in project preparation
See a video about our transmission vehicle HERE
