Broadcast truck OBVAN ready to work

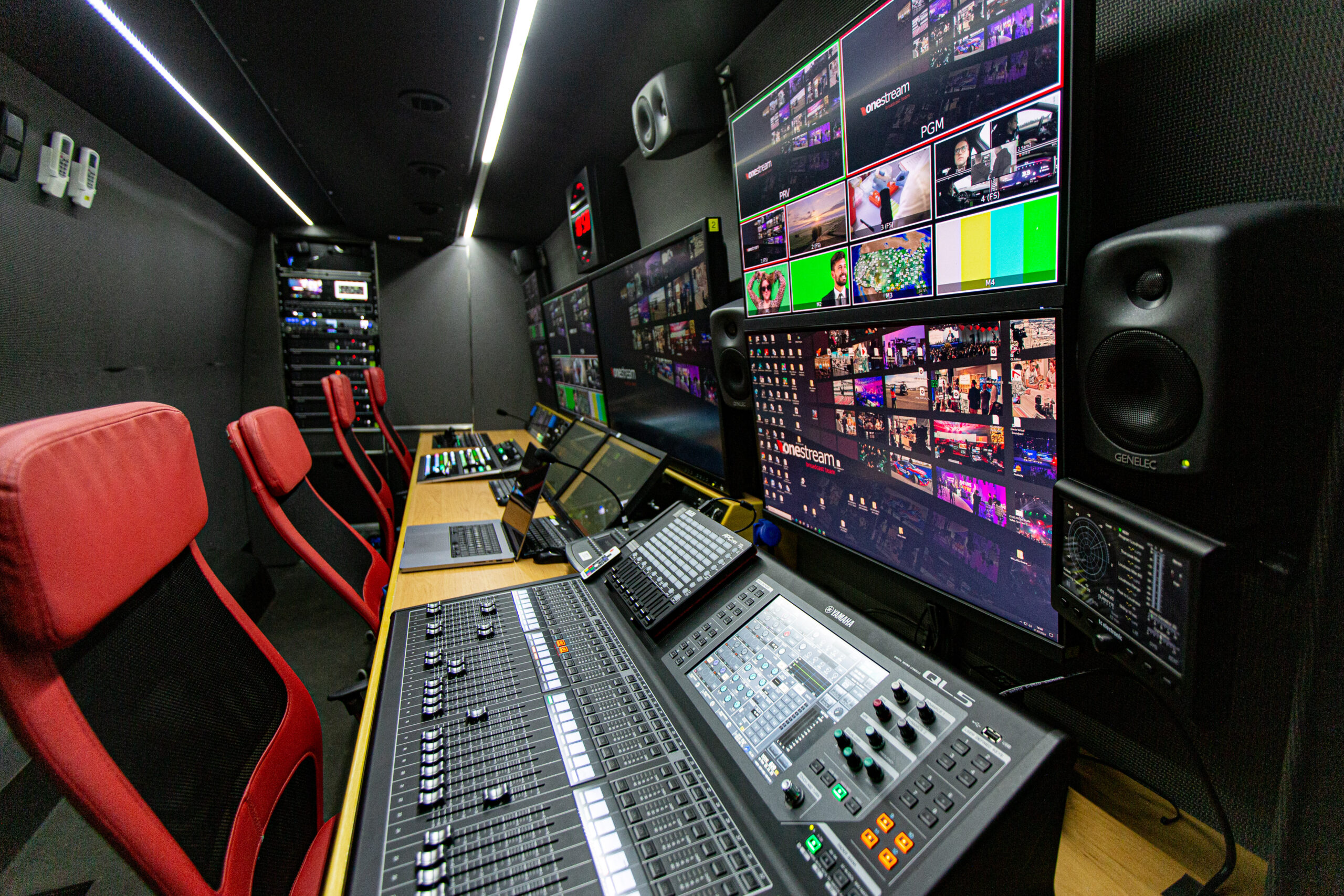

transmission truck interior

BROADCAST TRUCK OBVAN

The UNIT10 UHD OB VAN, built on the base of the longest version of the Mercedes Sprinter, was built in 2020 and can handle the most demanding corporate events, sports, music and television productions.

The OB VAN is equipped with 10 fiber optic chain camera system included 6pcs. Panasonic AK HC3900 4K/12G camera chains with a wide selection of lenses and 4 pcs. Panasonic AW-UE 150 PTZ cameras.

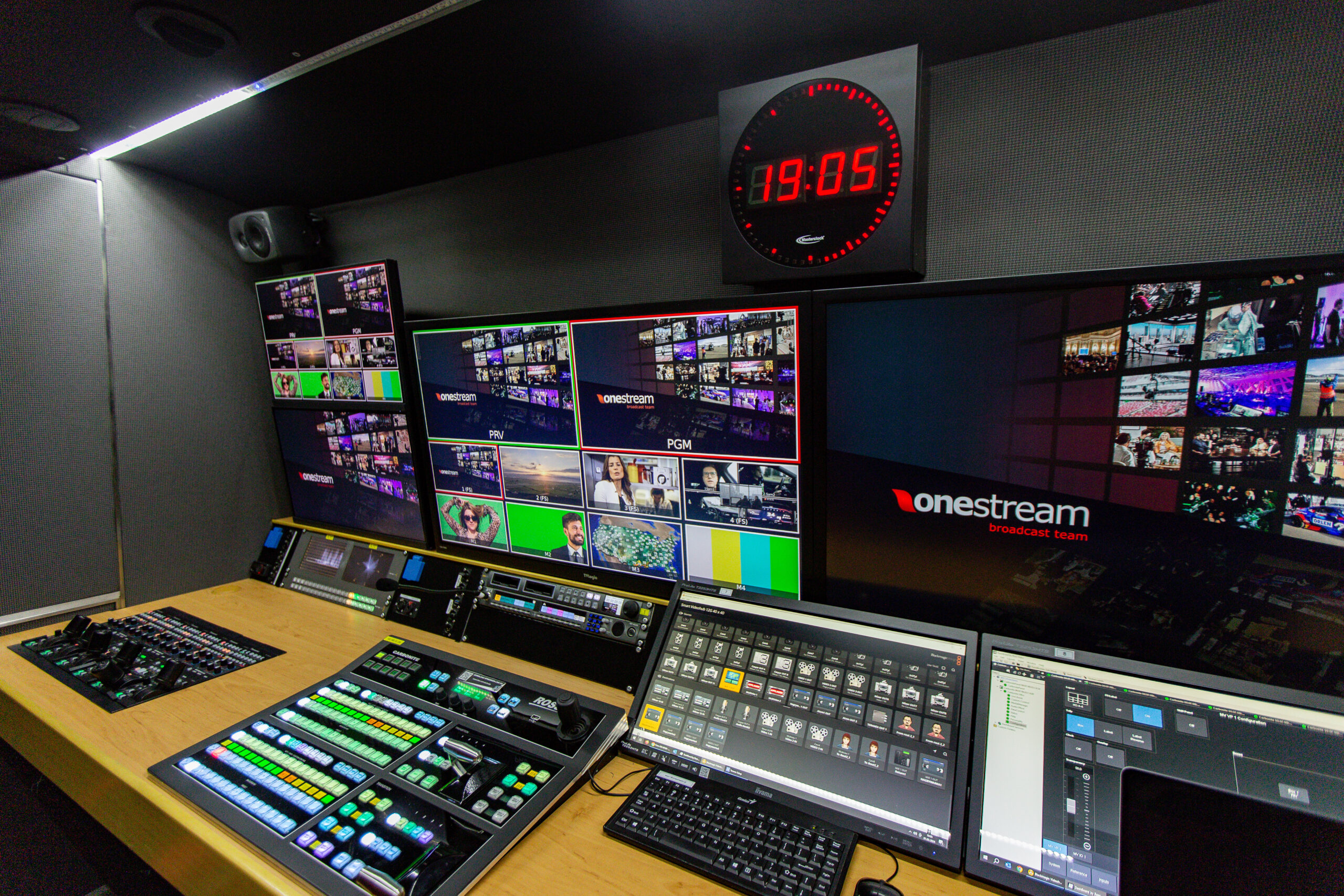

There are 6 workplaces – vision mixer, audio engineer, shading area, graphics area and slomo area, which provides comfort work for the team. We also have EVS XT3 ChannelMax replay system, RTS Intercom System, LiveU LU600 device with LiveU LU4000 server.  The operating standard of the OB VAN is FullHD and 4K/12G.

OBVAN TECHNICAL DETAILS

OBVAN

  • Mercedes Sprinter 316 LONG
  • Total length 7,4m
  • Production area length 6.2m
  • Total weight 3.5t
  • Energy needed three-phase 32A
  • Backup power UPS
  • Air Conditioning
  • Rack air conditioning
  • Webasto
  • Led lights
  • Workplaces 6szt.
  • Displays Production TV Logic 4k/12G 43" x 2 pcs
  • Displays Production 4 pcs
  • WiFi

VIDEO PRODUCTION

  • Camera Chain 4K/UHD Panasonic AK-HC3900G - 6 pcs
  • Lenses:
    • Canon HJ14 eX4.3 BIASE - 1 pc.
    • Fujinon HA13 x4.5 BERD - 1 unit.
    • Fujinon XA20 x8.5BRM - 4 pcs.
    • Fujinon HA42 x9.7-BERD - 1 unit.
    • Canon XJ86 x9.3 - 1 unit.
    • other on request
  • PTZ Cameras Panasonic AW-UE 150 - 2 pcs
  • PTZ Camera Control AU-RP 150
  • Camera POV Marshall CV 503 - 4 pcs
  • Camera Control CCU Marshall CV-RCP-V2

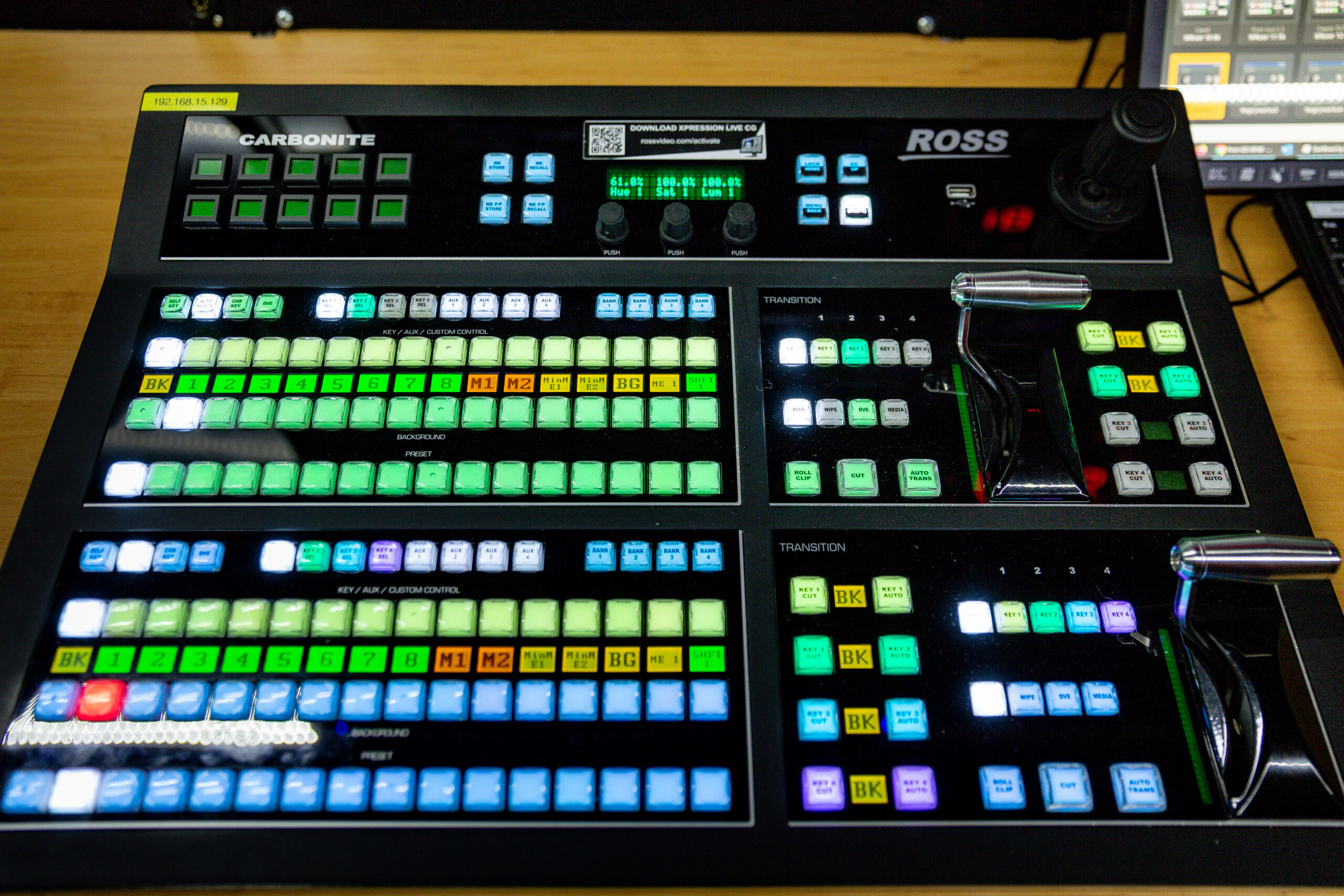

  • Ross Carbonite Ultra 4K/12G 2ME
  • Ross Carbonite Black 2 panel (2ME)
  • Recording Hyperdeck 4K/12G 1 szt.
  • Recording Atomos Shogun II - 8 channel
  • Router Videohub 12G/4K 80x80

AUDIO

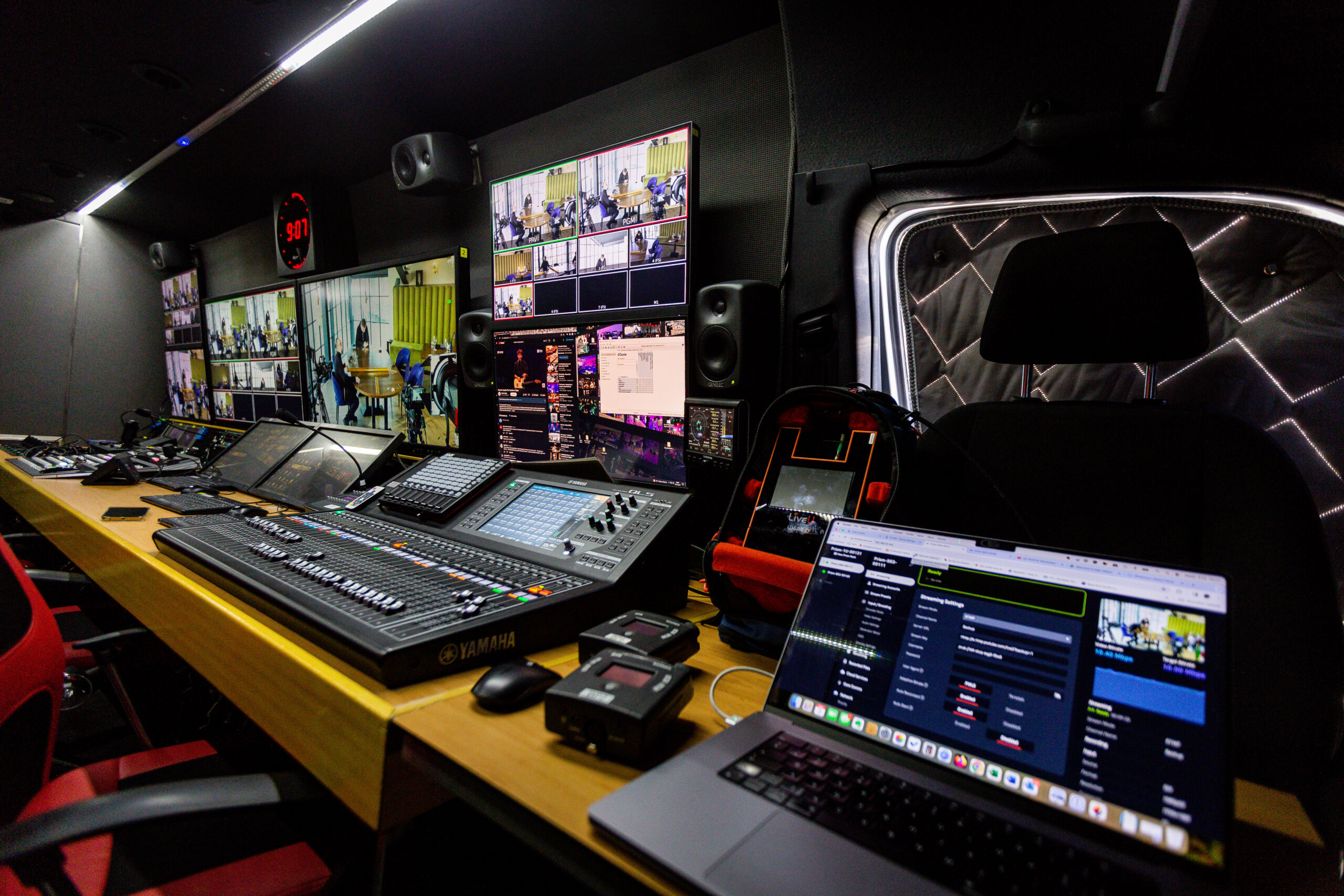

  • Yamaha QL5
  • Stange box Yamaha Tio 1608-D x 2 pcs
  • Fiber links Deante 300m x 2 pcs
  • Dante Commentary Unit Sonifex AVN-CU4
  • Routing Dante Cisco CBS 350 x 4 pcs

MICROPHONE SYSTEMS

  • Quad-Channel Wireless Receiver Shure ULXD 4Q Dante - 8 pcs
  • Wireless Receiver Sennheiser EW 100 - 4 pcs

MICROPHONES

  • Headset Microphone DPA-6066 - 8 pcs
  • Countryman Lavalier B6 - 4 pcs
  • Headset Microphone Countryman E5 - 4 pcs
  • Sennheiser MKE 2 GOLD - 4 pcs
  • Handheld Sennheiser e935 - 4 szt.
  • Handheld Shure Beta 58- 4 szt.
  • Handheld Shure Beta 87- 4 szt.
  • Monitoring Sets/IFB IEM G4 - 8 szt.
  • Intercom RTS, digital matrix OMS OMNEO
  • Beltpacks ROAMEO 8 pcs
  • Keypanels RTS DKP 4016 - 5 pcs
  • IFB via RTS  - 8 pcs
  • Motorola 10 pcs x CP040

ADDITIONAL

ENCODER

  • Encoder LiveU LU 600 (8 x LTE modems)
  • Encoder LiveU LU 300 (4 x LTE modems)
  • Encoder LiveU Solo+ (4 x LTE modems)
  • Teradek Prism 4K/12G HDR - 2 pcs
  • Server LiveU LU4000 12G 4K -1out 12G
  • Server LiveU LU2000 HD - 4 Out HD
  • Serwer odbiorczy LiveU Cloud 12G/4K
  • Server Caspar 12G 4K
  • Graphis Server XPression 12G 4K
  • DeckLink 4K Extreme
  • DeckLink 8K PRO
  • Wirecast PRO
  • Vmix 4K

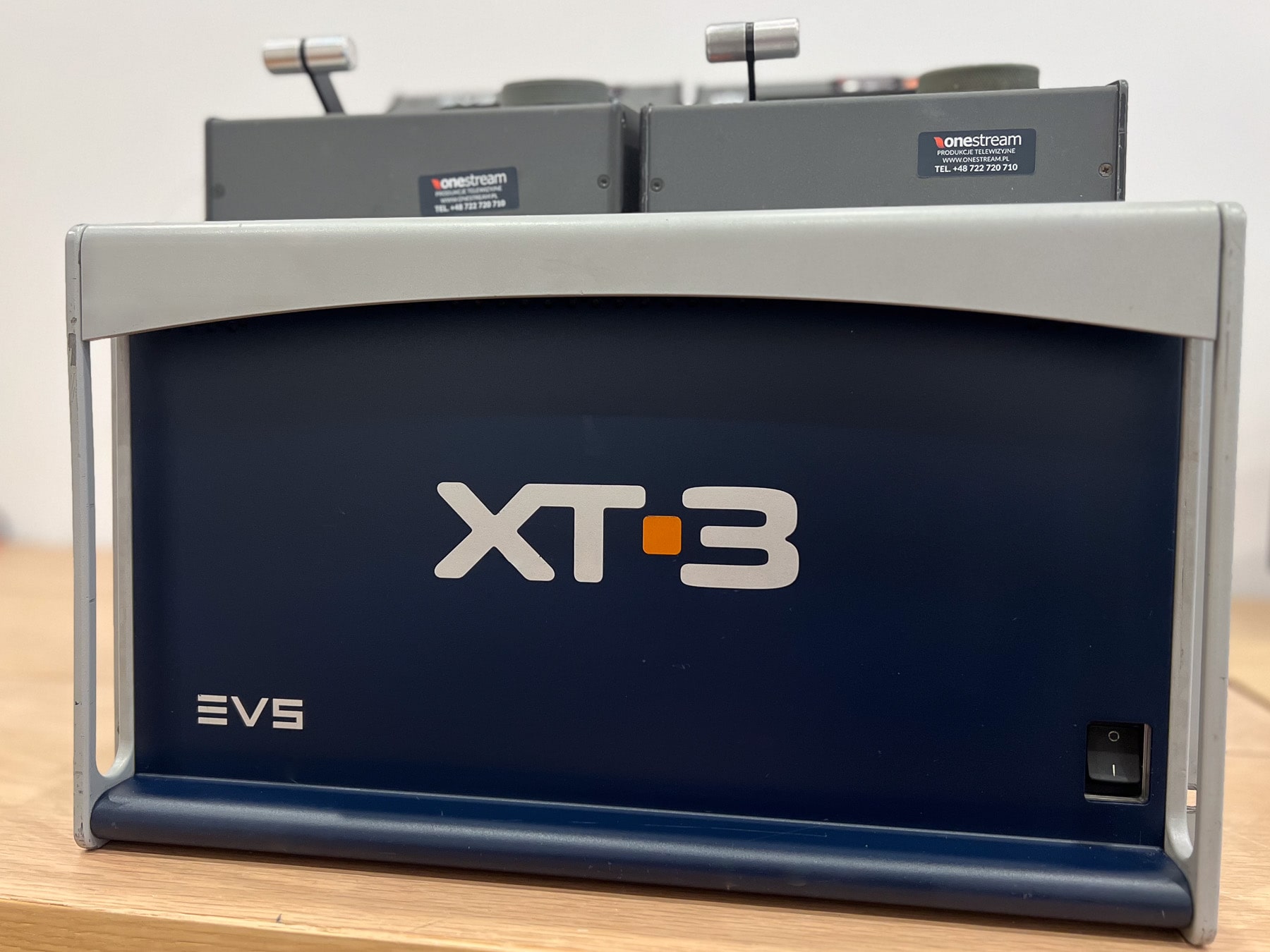

EVS XT3 ChannelMax (12 channel).

  • Server up 12 channels
  • Controlers EVS LSM 2 pcs,
  • Video Standard up to 1080/50p
  • Codec DNxHD
  • Codec Apple ProRes 4:2:2
  • Codec DVCPRO HD/50
  • Codec Mjpeg
  • Codec AVC Intra
  • Advance manage playlist
  • RAID SAS 900GB x 6 pcs.

OBVAN

RENT

You can rent an OB VAN for any project in Poland or abroad. The rental price includes the basic configuration, all additional elements are budgeted based on the assumptions of the project. The main assumptions in the rental offer:

  • rantal time – min. 1 day
  • access to any place in Poland
  • OB VAN rental with the whole team
  • OB VAN rental only with the OB VAN engineer and two technician
  • technical support in the implementation of the project

OBVAN

PRODUCTION

We specialize in complex television and live streaming productions. We carry out broadcast productions on the basis of our OB VAN.

  • technical event production
  • full OB VAN team
  • full configuration
  • own hardware facilities
  • rental hardware facilities
  • technical support in the implementation of the project

OBVAN Broadcast Truck

Use our contact form or call us: +48 722 720 710 or +48 22 666 09 18. We are waiting 7 days a week from 8 am to 8 pm. Quote within 1 day!
